Home > Products > Cement Making Machine > Cement MillCement Mill
- supply Ability:2 Set/Sets per month
- Port:Qingdao,Tianjin, Shanghai or others
- Type:Cement Mill
- Application:Used as cement plant
- Place of Origin:Henan China (Mainland)
- Brand Name:Hongxing
- Model Number: HX
- Certificate:ISO9001:2008
- Warranty: 12 Months
- Color: Orange
- Installation:under engineer's guidance

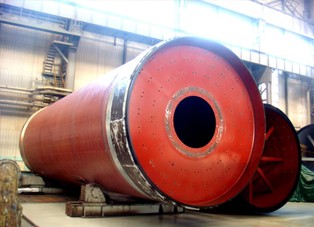

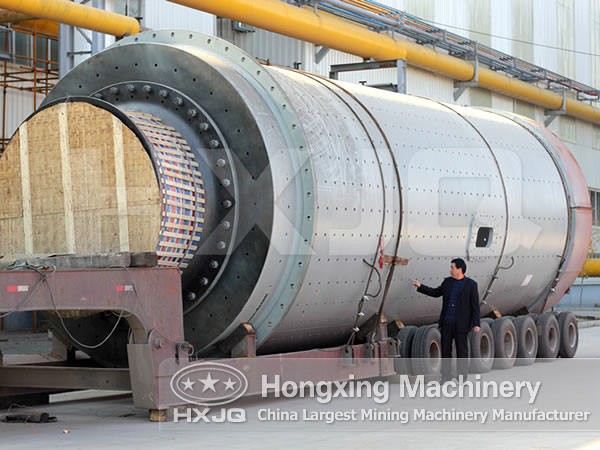

Cement mill is one key cement plant in the cement production process, which is mainly used for the wet grinding and dry grinding, and cement mill is made up of cylinder liners, diaphragms, main bearing feed device, feeding device and gear.
Cement mill not only can be used for the grinding work on the cement raw material, which also can be widely applied in the fields such as the chemical industry, ore dressing, metallurgy and fertilizer plant.
Cement mill has the advantages including the strong adaptation, continuous production, big crushing ratio and easy adjustment on the fineness of the grinding product. Cement mill can realize the production of the dry and the wet, which also can reach the purpose of grinding and drying at the same time.
Product Gallery
Technical parameters of
Cement Mill
| Product specification (m) |
Milling form | Transmission form | Gear box | Motor power (kw) |
Production capacity (t/h) |
Total weight (t) |
|
| Model | Speed reduction ratio | ||||||
| Φ1.83×7 | Open flow | Brim | ZD60 | 4.5 | 245 | 6.5-8 | 43.8 |
| Φ2.2×7.5 | Open flow | Brim | ZD70 | 5 | 380 | 8-10 | 64.8 |
| Φ2.2×11 | Open flow | Brim | D110 | 35.5 | 630 | 12-13 | 104.6 |
| Φ2.2×13 | Open flow | Brim | D110 | 35.5 | 630 | 16-18 | 114 |
| Φ2.4×13 | Open flow | Brim | D110 | 35.5 | 800 | 20-23 | 130.6 |
| Φ2.6×13 | Open flow | Brim | MFY100 | 19.5 | 1000 | 28-32 | 158 |
| Φ3×9 | Circle flow | Brim | D125 | 41.2 | 1000 | 28-36.5 | 167 |
| Φ3×11 | Circle flow | Brim | D140 | 42.8 | 1250 | 36-47 | 180 |
| Φ3.2×13 | Open flow | Brim | D140 | 36.5 | 1600 | 45-50 | 225 |
| Φ3.5×13 | Circle flow | Brim | JDX1000 | 5.84 | 2000 | 60-65 | 275 |
| Φ3.8×13 | Open flow | Central shaft | MFY250 | 16.5 | 2500 | 60-62 | 320 |
| Φ4.2×13 | Open flow | Central shaft | JQS3550 | 15.6 | 3530 | 85-87 | 380 |
| Φ4.6×14 | Circle flow | Central shaft | JSI160-C | 14.6 | 4200 | 120-135 | 485 |
Note: Please enter your demand such as Raw material type, Capacity, Feeding material size, Final product size, etc. To become our quality clients will have access to a discount of contract!
