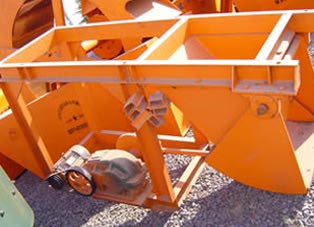

Pendulum Feeder

  • supply Ability:7 Set/Sets per Week
  • Port:Qingdao,Tianjin, Shanghai or others
  • Type:GZ1-5
  • Application:Used as ore separating line

Get a Quote Services Online

Pendulum Feeder
  • Place of Origin:Henan China (Mainland)
  • Brand Name:Hongxing
  • Model Number: HX
  • Certificate:ISO9001:2008
  • Warranty: 12 Months
  • Color: Orange
  • Installation:under engineer's guidance

Brief Description of Pendulum Feeder:

The pendulum feeder is one of the most common machines among the mining equipment. It is widely used in the material feeding process of the rock particles and it is also called shaker feeder. This machine is able to send the materials from the material cabin to the material receiving machine in a even, regular and continuous manner and it can be used for feeding materials to ball mill or belt conveyor.

Working Principle of Pendulum Feeder:

The electric motor slows down through the triangle speed reducer, and the power is transmitted to wheel whose eccentric distance can be adjusted. And then through the eccentric wheel and the connecting rod, the pendulum bottom plate is driven to move. The rocks above the rock cabin will be discharged out of the machine at an even speed, thus completing the feeding process.

Product Gallery

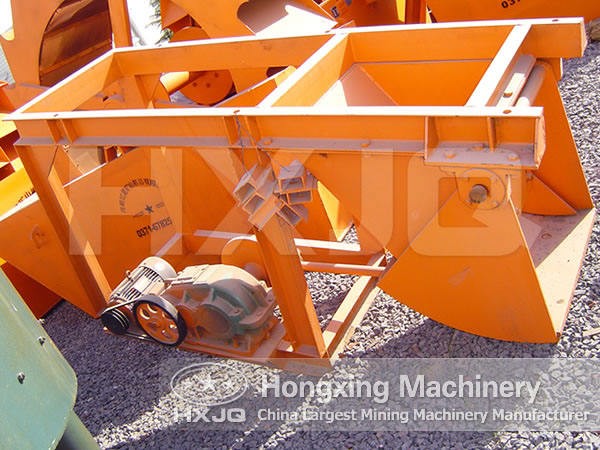

Pendulum Feeder

Technical parameters of Pendulum Feeder

Model Feeding capacity(t/h) Object Max. allowed input size(mm) Power(w) Voltage(v) Current(a) Double swing(mm) Clearance(mm) Total weight(kg)
GZ1 5 50 60 220 1<= 1.75 1.9-2.2 75
GZ2 10 60 150 220 2.3<= 1.75 1.9-2.2 155
GZ3 25 70 200 220 3.8<= 1.75 1.9-2.2 225
GZ4 50 100 450 220 7<= 1.75 1.9-2.2 460
GZ5 100 150 650 220 10.6<= 1.75 1.9-2.2 656
