Spiral Separator

  • supply Ability:1 Set/Sets per Week
  • Port:Qingdao,Tianjin, Shanghai or others
  • Type:spiral chute separator
  • Application:Used as ore beneficiation

Get a Quote Services Online

Spiral Separator
  • Place of Origin:Henan China (Mainland)
  • Brand Name:Hongxing
  • Model Number: HX
  • Certificate:ISO9001:2008
  • Warranty: 12 Months
  • Color: yellow
  • Installation:under engineer's guidance

Spiral chute separator owns the performance characteristics of the spiral ore dressing machine and centrifugal ore dressing machine, which is erect and which can be used for the exploration areas including waterfront, river and creek road.

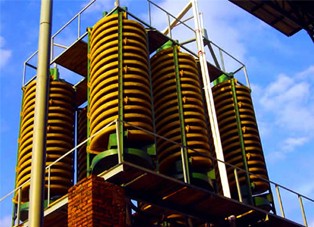

Spiral Chute Separator

In the process of spiral chute separator, mineral sand is conveyed to the spiral chute by the feeding port, and to pour water to the chute at the same time can adjust the density of the mineral pulp with the features of top-down and rotary circle, which can produce the centrifugal force in the process of rotation in order to separate the materials, and that is the reason why it is also being called gravity spiral chute.

Construction chute has the merits such as the simple structure, convenient installing and maintenance, small occupying land, no noise in the process, big handling capacity, higher sorting rate and longer lifespan.

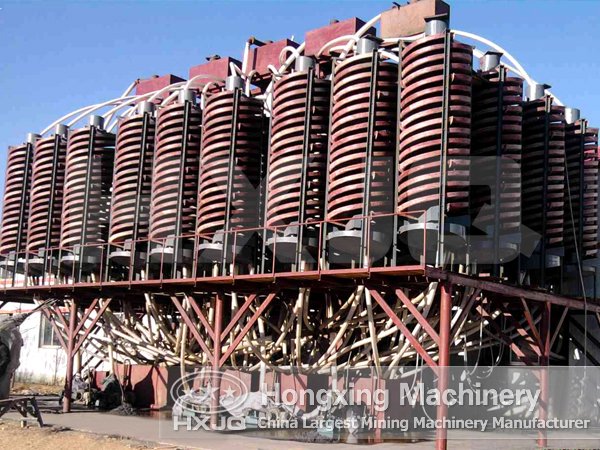

Product Gallery

Technical parameters of Spiral Separator

Model Dl2000 5LL-900 5LL-600 5LL-400
External diameter(mm) 2000 1500 1200 900
Inner distance(mm) 360 250 220 180
Screw distance(mm) 1200 900-675 720/540 540/360
Ratio(scroll distance/diameter) 0.6 0.6 0.6/0.45 0.6/0.4
Transverse obliquity(°)
Star 2-4 2-4 2-4 2-4
Turn 3.5 4 4/5 4/5
Feeding size(mm) 0.4-1 0.03-1 0.03-0.3 0.03-0.3
Feeding thickness(%)  20-45  30-45  30-50 30-50
Processing capacity(t/h) 15-40   8-16 4-6   2-3
Area(m²) 5.7   3.3  2  1.2
Height(mm) 6.6-8   5.5  5.23  3.2
