Home > Products > Ore Dressing Machine > Magnetic SeparatorMagnetic Separator
- supply Ability:3 Set/Sets per Week
- Port:Qingdao,Tianjin, Shanghai or others
- Type:magnetic drum separator
- Application:Used as iron ore concentrator
- Place of Origin:Henan China (Mainland)
- Brand Name:Hongxing
- Model Number: HX
- Certificate:ISO9001:2008
- Warranty: 12 Months
- Color: Orange
- Installation:under engineer's guidance
Magnetic separator is one essential machine in the ore dressing process, which is mainly used for screening the magnetic and non-magnetic material from the mineral powder and mineral pulp. Magnetic separator generally is one type of the cylinder, and that is the reason why it is also named magnetic drum separator.
The structure of magnetic separator: It is made by the excellent oxygen material, and the cylinder is welded by the stainless steel plate from the two to three meters, and the cover is cast aluminum parts, which is connected by the stainless screws.
The rotor can drive the movement of the cylinder by reducer. The magnetic system is open, which is put in the part of cylinder.
Magnetic separator is used for the sorting and screening process on the material such as magnetite, pyrite and limonite, which usually takes wet type of the magnetic that is also called wet magnetic separator. And what's more, magnetic separator machine can also be applied in the energy recovering process in the industries such as the chemical industry, electronic factory and food factory.
Hongxing mining machinery is the leader in the china magnetic separator which majors in producing the magnetic separator machine.

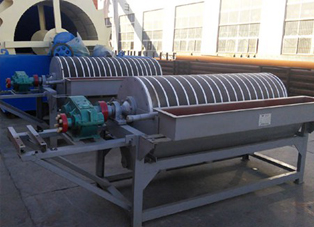

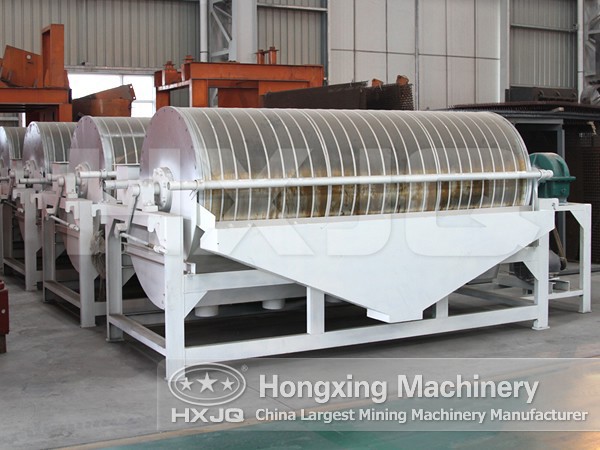

Product Gallery
Technical parameters of
Magnetic Separator
| Model | Shell diameter （mm） |
Shell lenght （mm） |
Shell rotation speed（r/min） |
Feeding size （mm） |
Processing capacoty （t/h） |
Power（kw） |
| CTB6012 | 600 | 1200 | <35 | 2-0 | 10-20 | 1.5 |
| CTB6018 | 600 | 1800 | <35 | 2-0 | 15-30 | 2.2 |
| CTB7518 | 750 | 1800 | <35 | 2-0 | 20-45 | 2.2 |
| CTB9018 | 900 | 1800 | <35 | 3-0 | 40-60 | 3 |
| CTB9021 | 900 | 2100 | <35 | 3-0 | 45-60 | 3 |
| CTB9024 | 900 | 2400 | <28 | 3-0 | 45-70 | 4 |
| CTB1018 | 1050 | 1800 | <20 | 3-0 | 50-75 | 5.5 |
| CTB1021 | 1050 | 2100 | <20 | 3-0 | 50-100 | 5.5 |
| CTB1024 | 1050 | 2400 | <20 | 3-0 | 60-120 | 5.5 |
| CTB1218 | 1200 | 1800 | <18 | 3-0 | 80-140 | 5.5 |
| CTB1224 | 1200 | 2400 | <18 | 3-0 | 85-180 | 7.5 |
| CTB1230 | 1200 | 3000 | <18 | 3-0 | 100-180 | 7.5 |
| CTB1530 | 1500 | 3000 | <14 | 3-0 | 170-280 | 11 |
Note: Please enter your demand such as Raw material type, Capacity, Feeding material size, Final product size, etc. To become our quality clients will have access to a discount of contract!
