Details
Home > Products > Ore Dressing Machine > Ore ConcentrateOre Concentrate
- supply Ability:5 Set/Sets per week
- supply Ability:1 Set/Sets per month
- Port:Qingdao,Tianjin, Shanghai or others
- Type:Energy saving
- Application:Used as ore separating line
- Place of Origin:Henan China (Mainland)
- Brand Name:Hongxing
- Model Number: HX
- Certificate:ISO9001:2008
- Warranty: 12 Months
- Color: Orange
- Installation:under engineer's guidance

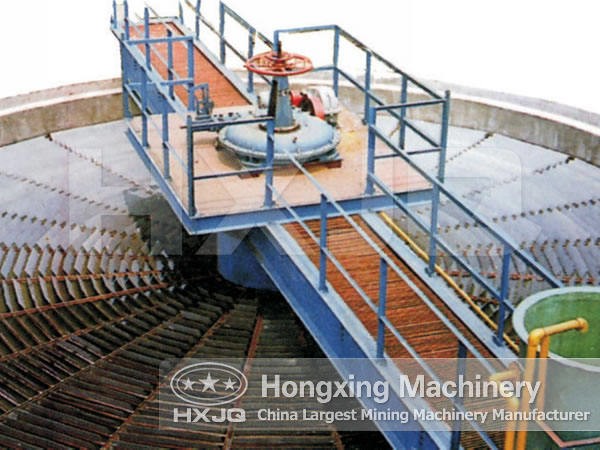

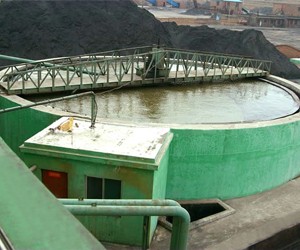

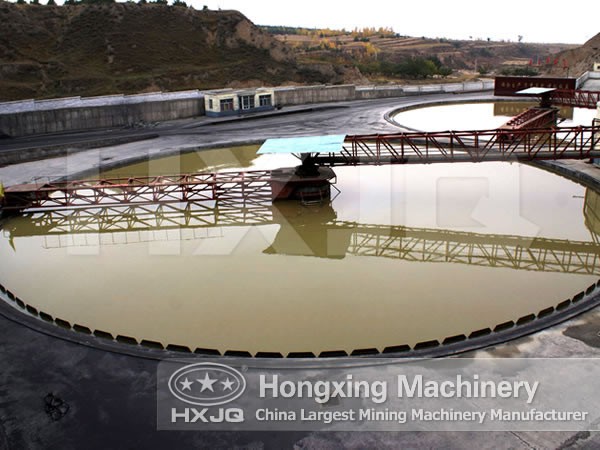

Ore concentrate is mainly used in the ore beneficiation industry and it is able to dewater the concentrate and the tailings, so that is also called pulp thickener or tailing thickener.
High efficiency concentrator is researched on the basis of the traditional thickener and it is a new type dewatering machine that is able to filter the slurry.
High efficiency thickener is widely applied in many departments such as mining, coal, chemistry, building materials and environmental protection and it is able to process slurry and waste water. According to its working principle, it can be divided into peripheral driving thickener and central driving thickener.
Product Gallery
Technical parameters of
Ore Concentrate
| Specification | Concentration pond （m） | Deposit square(m2) | Harrow part | Motor | Processing capacity (t/d) | Total weight（t） | |||||
| Model | Specification | Inner diameter | Depth | Pond degree | Method | Height（m） | Rotation time（min/r） | Driving | Lifting | ||
| NZS-1 | Φ1.8m | 1.8 | 1.8 | 2.54 | Manual | 0.16 | 2 | Y90L-6 1.1KW | ---- | 5.6 | 1.9 |
| NZS-3 | Φ3.6m | 3.6 | 1.8 | 10.2 | Manual | 0.35 | 2.5 | Y90L-6 1.1KW | ---- | 22.4 | 4.3 |
| NZS-6 | Φ6m | 6 | 3 | 28.3 | Manual | 0.2 | 3.7 | Y90S-4 1.1KW | ---- | 62 | 10.7 |
| NZSF-6 | Φ6m | 6 | 3 | 28.3 | Manual | ---- | 3.7 | Y90S-4 1.1KW | ---- | 62 | 5.1 |
| NZ-9 | Φ9m | 9 | 3 | 63.6 | Auto | 0.25 | 4.34 | Y132S-6 3KW | XWD0.8-3 0.8KW | 140 | 8.5 |
| NZS-9 | Φ9m | 9 | 3 | 63.6 | Manual | 0.25 | 4.34 | Y132S-6 3KW | ---- | 140 | 7.5 |
| NZS-12 | Φ12m | 12 | 3.5 | 113 | Manual | 0.25 | 5.28 | JTC752A-44 5.2KW | ---- | 250 | 11.1 |
| NZ-15 | Φ15m | 15 | 4.4 | 176 | Auto | 0.4 | 10.4 | JTC752A-44 5.2KW | Y112M-6 2.2KW | 350 | 26.0 |
| NZ-20 | Φ20m | 20 | 4.4 | 314 | Auto | 0.4 | 10.4 | Y100L1-4 5.2KW | Y112M-6 2.2KW | 960 | 28.9 |
| NZ-30 | Φ30m | 30 | 7.165 | 707 | ---- | 0.61 | 13.7 | JTC672A-44 5.2KW | YCJ132-S 1.5KW | ---- | 36.6 |
| NZS-45 | Φ45m | 45 | 4.633 | 1590 | Manual | ---- | 20 | JTC672A-44 5.2KW | YCJ160-S 2.2KW | 515 | 54.4 |
| NT-15 | Φ15m | 15 | 3.5 | 177 | ---- | ---- | 8.4 | Y132M2-6 5.5KW | ---- | 390 | 12.6 |
| NQ-18 | Φ18m | 18 | 3.5 | 255 | ---- | ---- | 10 | Y132M2-6 5.5KW | ---- | 560 | 11.6 |
| NQ-24 | Φ24m | 24 | 3.4 | 452 | ---- | ---- | 12.7 | Y160M-6 7.5KW | ---- | 1000 | 26.6 |
| NG-30 | Φ30m | 30 | 3.6 | 707 | ---- | 16 | Y160M-6 7.5KW | ---- | 1570 | 30.9 | |
| NJ-38 | Φ38m | 38 | 4.9 | 1134 | ---- | ---- | 10-25 | JZT252-4 11KW | Y160M-6 7.5KW | 1600 | 63.3 |
| NT-45 | Φ45m | 45 | 5.05 | 1590 | Auto | ---- | 19.3 | Y160L-6 11KW | ---- | 2400 | 66.8 |
| NTJ-53 | Φ53m | 53 | 5.07 | 2202 | ---- | ---- | 23.18 | Y180L-6 15kw |
---- | 6250 | 89.1 |
| NT-100 | Φ100m | 100 | 5.65 | 7846 | ---- | ---- | 43 | Y180L-6 15KW | ---- | 3030 | 214.9 |
Note: Please enter your demand such as Raw material type, Capacity, Feeding material size, Final product size, etc. To become our quality clients will have access to a discount of contract!
