Home > Products > Powder Grinding Equipment > High Pressure Grinding MillHigh Pressure Grinding Mill
- supply Ability:2 Set/Sets per Week
- Port:Qingdao,Tianjin, Shanghai or others
- Type:High Pressure Grinding Mill
- Application:Used as milling equipment
- Place of Origin:Henan China (Mainland)
- Brand Name:Hongxing
- Model Number: HX
- Type: pulverizer machine
- Certificate:ISO9001:2008
- Warranty: 12 Months
- Color: Orange
- Installation:under engineer's guidance
High pressure grinding mill, whose whole name is high pressure suspension grinding mill, is one new type which is used to grind the stone to micro powder.Powder grinding mill can be used for processing some materials whose Moh's hardness is no more than 6 levels, such as limestone, calcite, marble and kaolin.
High pressure grinding mill has the wider application than the jet mill. Compared with other similar products, this machine takes the higher pressure spiral, which can help increase the pressure, and the output of every unit is much higher.
The material can be ground below 6.5um by one time grinding, and that is the reason why this machine is also called micro powder grinding mill.
Compared with other similar products, Hongxing high pressure micro powder mill has the following merits including better energy conservation, better sealing, lower dust pollution and higher working efficiency of dust cleaning, which can fully reach the standard of the nation.

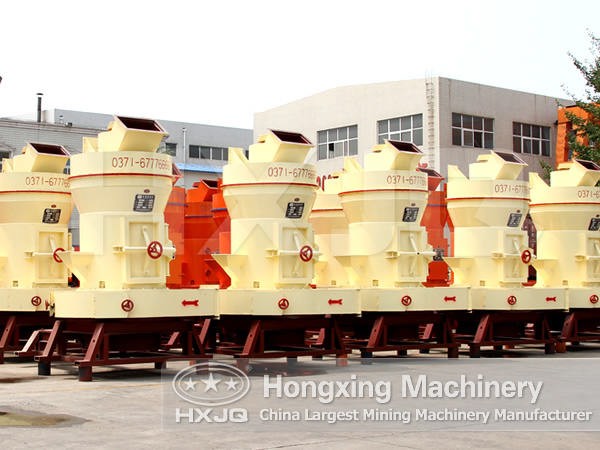

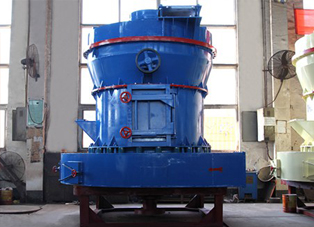

Product Gallery
Technical parameters of
High Pressure Grinding Mill
| Parameter Model | Micropowder93 | Micropowder92 | Micropowder87 | Micropowder76 | Micropowder66 |
| Feeding size（mm） | ≤25 | ≤25 | ≤20 | ≤20 | ≤15 |
| Size of finished product（mm） | 0.125-0.010 | 0.125-0.033 | 0.125-0.010 | 0.125-0.033 | 0.125-0.010 |
| Shift output of different material fineness（t) | 0.8-12 | 0.6-10 | 0.4-8 | 0.3-6 | 0.2-4 |
| Rotate speed of pulverizing ring（r/min） | 140 | 148 | 160 | 170 | 180 |
| Diameter of pulverizing ring（mm） | 1006 | 973 | 907.5 | 850 | 725 |
| Diameter of pulverizing roller（mm） | 300 | 300 | 270 | 250 | 210 |
| Height of pulverizing roller（mm） | 160 | 160 | 150 | 150 | 150 |
| Main Motor | Y225M-8-30 | Y225M-8-22 | Y225M-8-22 | Y225S-8-18.5 | Y225M-8-15 |
| Fan Motor | Y180M-2-22 | Y180L-4-22 | Y160L-4-18.5 | Y160L-4-15 | Y160L-4-11 |
| Analyzer Motor | YCT180M-4A-4 | YCT180M-4A-4 | YCT180M-4A-4 | YCT160-4B-3 | YCT160-4B-3 |
Note: Please enter your demand such as Raw material type, Capacity, Feeding material size, Final product size, etc. To become our quality clients will have access to a discount of contract!
