Rod Mill

  • supply Ability:2 Set/Sets per month
  • Port:Qingdao,Tianjin, Shanghai or others
  • Type:ball mill
  • Application:Used as ore beneficiation

Get a Quote Services Online

Rod Mill
  • Place of Origin:Henan China (Mainland)
  • Brand Name:Hongxing
  • Model Number: HX
  • Certificate:ISO9001:2008
  • Warranty: 12 Months
  • Color: Orange
  • Installation:under engineer's guidance

Rod mill is a new type ore grinding machine which is widely used in the ore beneficiation production line. It has the similar working principle with the ball mill, but since the ore grinding media filled in the machine are steel rod, it is called rod mill. It is widely applied in powder grinding all kinds of rocks and ores in metal and non-metallic mining, water conservancy and building material department. As a result, it can also be called mineral rod mill or ore rod mill.

Grinding Rod Mill Types

Since grinding rod mill often adopts over flow type, it is also called wet type rod mill. Generally speaking, grinding rod mill is used as first-stage open-circuit ore grinding equipment. n addition, there is dry rod mill which is often used in artificial sand and stone making production line, ore beneficiation plant, chemistry and power station.

The grinding granularity of the rod mill is related to the rocks to be ground. When the steel rods impact the rocks, the large and coarse particles are the first to be hit, and then the small and fine ones. In this way, over-crushing phenomenon can be avoided. So it can also be called crushing mill.

The driving method of the rod mill can be divided into left rotation and right rotation, so that it is also called rotary rod mill. The discharging methods are round discharging and center discharging, and Hongxing Machinery is able to customize the production.

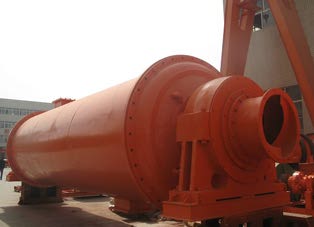

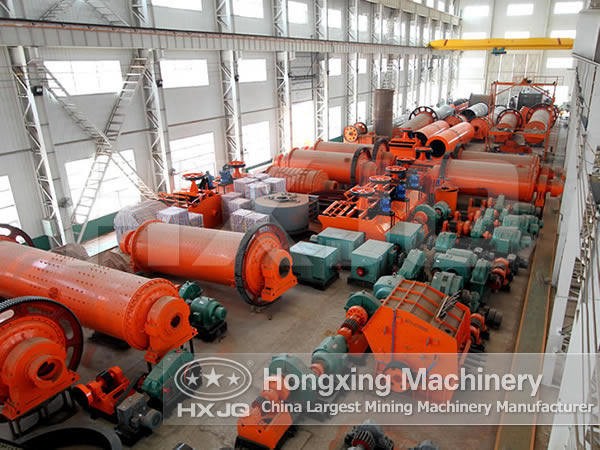

Product Gallery

Rod Grinder

Technical parameters of Rod Mill

Model Shell specifications(mm) Shell rotation speed(r/min) Feeder granularity(mm) Output granularity(mm) Processing capacity(t/h) Power(kw) Weight(kg)
Dia. Length
MBS0918 900 1800 36-38 <=25 0.833-0.147 0.62-3.2 18.5 4600
MBS0924 900 2400 36 <=25 0.833-0.147 0.81-4.3 22 5100
MBS1224 1200 2400 36 <=25 0.833-0.147 1.1-4.9 30 12000
MBS1530 1500 3000 29.7 <=25 0.833-0.147 2.4-7.5 75 15600
MBS1830 1830 3000 25.4 <=25 0.833-0.147 4.8-11.6 130 28000
MBS2130 2100 3000 23.7 <=25 0.833-0.147 14-35 155 34000
MBS2136 2100 3600 23.7 <=25 0.833-0.147 19-43 180 37000
MBS2430 2400 3000 21 <=50 0.833-0.147 25-65 245 54000
MBS2736 2700 3600 20.7 <=50 0.833-0.147 32-86 400 86000
MBS2740 2700 4000 20.7 <=50 0.833-0.147 32-92 400 94000
MBS3245 3200 4500 18 <=50 0.833-0.147 64-180 800 137000
