Home > Products > Ore Dressing Machine > Rotary DryerRotary Dryer
- Input Moisture:5-75%
- Output Moisture:1-15%
- Grinding Type:Wet or Dry
- Drum Mateeials:Heat-resisting steel sheet
- Input temperature:≤800 degrees Celsius
- Place of Origin:Henan China (Mainland)
- Brand Name:Hongxing
- Model Number: HX
- Certificate:ISO9001:2008
- Warranty: 12 Months
- Color: Orange
- Installation:under engineer's guidance
The rotary dryer is shortened as dryer machine which is a kind of dry mining equipment that is used in ore beneficiation plant. This machine is mainly used for drying the wet concentrate fines and also for drying other particles and powders such as saw dust and cement.

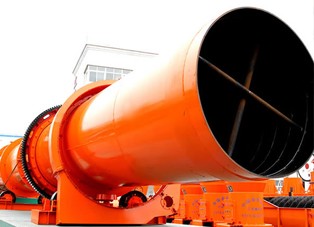

The rotary dryer is also called drum dryer or rotary drying machine which is composed by a cylinder-shaped structure. This cylinder is put in a horizontal way and one end is relatively higher than the other. When the rotary drum dryer works, the wet materials are sent to the material adding cabin by the belt conveyor or the bucket elevator, and the materials go inside the dryer machine from the upper end, and the dryer will constantly rotate, the materials inside the cylinder will be brought to a higher part with the rotation of the machine and then fall down. There is lifting board on the internal wall of the cylinder which is used for making the materials evenly fall down after they are brought a higher part, thus increasing the touching area of the materials with the air. Some dryers has hot air going through from one end in order to dry the materials faster.
Henan Hongxing Mining Machinery Co., Ltd. can specially produce large and small size four dryer and can also customize the dryer equipment suitable for various industries.
Product Gallery
Technical parameters of
Rotary Dryer
| Model(m) | Capacity(t/h) | Main motor | Main gear box | Weight(t) | ||
| Power(kw) | Model | Model | Speed reduction ratio | |||
| Ø1.2*10m | 2.5 | 7.5 | Y160M-R3 | ZL50-16-I | --- | 13.5 |
| Ø1.5*12m | 3.3-4.9 | 10 | Y160L-6-B3 | JZQ500--2F | --- | 18.9 |
| Ø1.5*15m | 4-6 | 18.5 | Y200L1-6 | JZQ500--2F | --- | 21 |
| Ø1.8*12m | 4-6 | 18.5 | Y160L-6 | ZQ50-16-2 | 16.46 | 23 |
| Ø2.2*12m | 7-12 | 18.5 | Y200L7-6 | JZQ650- | 31.5 | 38 |
| Ø2.2*14m | 7-12 | 22 | Y200L7-6 | JZQ650- | 31.5 | 40 |
| Ø2.2*16m | 12 | 30 | Y225M-6 | JZQ750- | 31.5 | 45 |
| Ø2.4*14m | 12 | 30 | Y250M-6 | JZQ750- | 31.5 | 51 |
| Ø2.4*18m | 10-13 | 37 | Y250M-6 | ZL85-13-I | 27.16 | 54 |
| Ø2.4*20m | 10-14 | 37 | Y250N-6 | ZL85-13-I | 27.16 | 55 |
| Ø3*20m | 25 | 55 | Y250M-4 | ZL100-16-I | 41.52 | 78 |
| Ø3*25m | 32-36 | 75 | YR280M-4 | ZL100-16-I | 41.52 | 105 |
Note: Please enter your demand such as Raw material type, Capacity, Feeding material size, Final product size, etc. To become our quality clients will have access to a discount of contract!
