Home > Products > Ore Dressing Machine > Rotary KilnRotary Kiln
- supply Ability:2 Set/Sets per Month
- Port:Qingdao,Tianjin, Shanghai or others
- Type:clinker rotary kiln
- Application:Used as ore separating line
- Place of Origin:Henan China (Mainland)
- Brand Name:Hongxing
- Model Number: HX
- Certificate:ISO9001:2008
- Warranty: 12 Months
- Color: Gray
- Installation:under engineer's guidance
Rotary kiln is a common machine used for calcining materials and it has wide application in ore beneficiation plant, waste disposal plant, cement production plant and limestone production plant.
The application of rotary kiln in ore beneficiation plant: During the ore dressing process, there are often some weak magnetized rock raw materials which are not easy to be separated with the magnetic separation. Then using the rotary kiln to calcine such materials to increase the magnetism, the materials are conducive to further magnetic separation. For this reason it can also be mineral rotary kiln.
In the cement production line, the rotary kiln can be used for burning the cement clinker. Then it is called clinker rotary kiln or rotary calciner kiln. The rotary kiln is one of the important machines in the cement production. In addition, it can also be used for calcining clay, ceramics or haycite.
Lime rotary kiln plays an important role in the lime production line and it is mainly used for heating the limestone with high temperature to make it produce chemical reaction. For this reason, it is also called limestone rotary kiln.

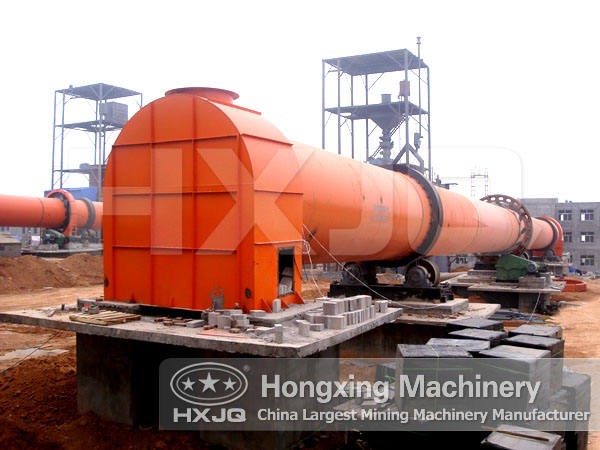

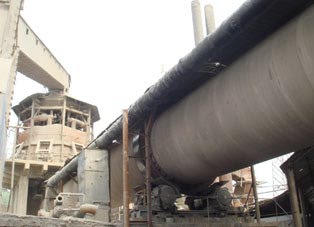

Product Gallery
Technical parameters of
Rotary Kiln
| Product Specification （m） |
Kiln dimensions | Motor power （kw） |
Total weight （t） |
note | ||||
| Diameter （m） |
Length （m） |
Obliquity （%） |
Capacity （t/d） |
Rotation speed （r/min） |
||||
| Φ2.5×40 | 2.5 | 40 | 3.5 | 180 | 0.44-2.44 | 55 | 149.61 | ----- |
| Φ2.5×50 | 2.5 | 50 | 3 | 200 | 0.62-1.86 | 55 | 187.37 | ----- |
| Φ2.5×54 | 2.5 | 54 | 3.5 | 280 | 0.48-1.45 | 55 | 196.29 | outside disassemble kiln |
| Φ2.7×42 | 2.7 | 42 | 3.5 | 320 | 0.10-1.52 | 55 | 198.5 | ------ |
| Φ2.8×44 | 2.8 | 44 | 3.5 | 450 | 0.437-2.18 | 55 | 201.58 | outside disassemble kiln |
| Φ3.0×45 | 3 | 45 | 3.5 | 500 | 0.5-2.47 | 75 | 210.94 | ------ |
| Φ3.0×48 | 3 | 48 | 3.5 | 700 | 0.6-3.48 | 100 | 237 | outside disassemble klin |
| Φ3.0×60 | 3 | 60 | 3 | 800 | 0.3-2 | 100 | 310 | ------ |
| Φ3.2×50 | 3.5 | 50 | 4 | 1000 | 0.6-3 | 125 | 278 | disassemble klin |
| Φ3.3×52 | 3.3 | 52 | 3.5 | 1300 | 0.266-2.66 | 125 | 283 | kiln with preheater precalcine |
| Φ3.5×54 | 3.5 | 54 | 3.5 | 1500 | 0.55-3.4 | 220 | 363 | kiln with prehrater precalcine |
| Φ3.6×70 | 3.6 | 70 | 3.5 | 1800 | 0.25-1.25 | 125 | 419 | Generating klin for usimg ofterheat |
| Φ4.0×56 | 4 | 56 | 4 | 2300 | 0.41-4.07 | 315 | 456 | klin with prehrater precalcine |
| Φ4.0×60 | 4 | 60 | 3.5 | 2500 | 0.396-3.96 | 315 | 510 | klin with prehrater precalcine |
| Φ4.2×60 | 4.2 | 60 | 4 | 2750 | 0.41-4.07 | 375 | 633 | klin with prehrater precalcine |
| Φ4.3×60 | 4.3 | 60 | 3.5 | 3200 | 0.396-3.96 | 375 | 583 | klin with prehrater precalcine |
| Φ4.5×66 | 4.5 | 66 | 3.5 | 4000 | 0.41-4.1 | 560 | 710.4 | klin with prehrater precalcine |
| Φ4.7×74 | 4.7 | 74 | 4 | 4500 | 0.35-4 | 630 | 849 | klin with prehrater precalcine |
| Φ4.8×74 | 4.8 | 74 | 4 | 5000 | 0.396-3.96 | 630 | 899 | klin with prehrater precalcine |
| Φ5.0×74 | 5 | 74 | 4 | 6000 | 0.35-4 | 710 | 944 | klin with prehrater precalcine |
| Φ5.6×87 | 5.6 | 87 | 4 | 8000 | Max4.23 | 800 | 1265 | klin with prehrater precalcine |
| Φ6.0×95 | 6 | 95 | 4 | 10000 | Max5 | 950×2 | 1659 | klin with prehrater precalcine |
Note: Please enter your demand such as Raw material type, Capacity, Feeding material size, Final product size, etc. To become our quality clients will have access to a discount of contract!
