Home > Products > Stone Crushing Equipment > Cone CrusherCone Crusher
- Supply Ability: 1 Set/Sets per Week
- Port: Qingdao,Tianjin, Shanghai or others
- Type: Hydraulic cone crusher
- Input Size: 76-320mm
- Application: Used as secondary crusher
- Place of Origin:Henan China (Mainland)
- Brand Name:Hongxing
- Model Number: HX
- Certificate:ISO9001:2008
- Warranty: 12 Months
- Color: Orange / white
- Installation:under engineer's guidance
- Delivery Means: Container
Cone crusher is a new type crushing machine suitable to crush all kinds of mineral rock and stone with the medium hardness. Cone breaker has the advantages of big crushing ratio, lower energy consumption, higher working efficiency, which can be widely used in the field of the chemical industry and housing building.
With the continuous development of mining machinery, rock cone crusher is also experiencing one process of being improved and perfected, and there are two type cone crushers, one is the spiral cone crusher, and the other is the hydraulic cone crusher. Cone crusher can also be called Symons cone crusher in some areas.
Hongxing Machinery is a large-scale mining manufacturing enterprise, whose roles are also including cone crusher manufacturer and supplier. Our company can specially design the mining machine that can satisfy your requirement, which majors in producing crushing machines with the various sizes. Hongxing cone crushers are proven one of the most well balanced cone crushers in the world.

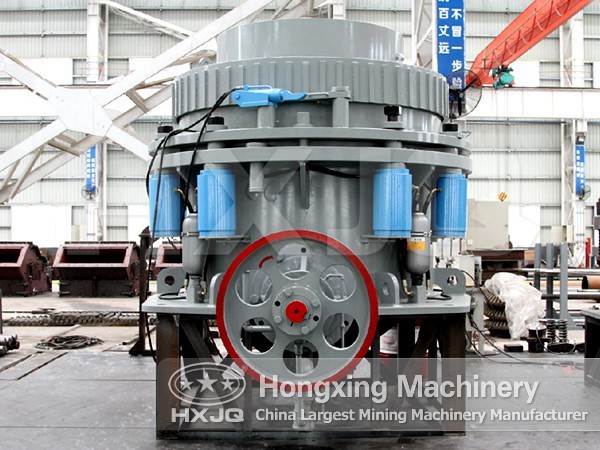

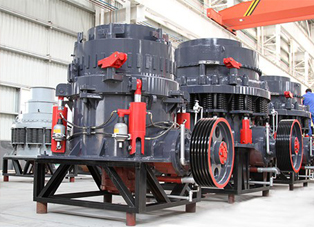

Product Gallery
Technical parameters of
Cone Crusher
| Specification | Model | Diameter of large end of crushing cone (mm) |
Max.feeding size(mm) |
Width of discharge opening (mm) |
Processing capacity (t/h) |
Motor power (kw) |
Total weight （t） |
Dimensions (L×W×H) （mm） |
| Φ600 | PYB600 | 600 | 65 | 12-25 | 40 | 8P 30 | 5 | 2234×1370×1675 |
| PYD600 | 35 | 3-13 | 12-23 | 5.5 | 2234×1370×1675 | |||
| Φ900 | PYB900 | 900 | 115 | 15-50 | 50-90 | 8P 55 | 11.2 | 2692×1640×2350 |
| PYZ900 | 60 | 5-20 | 20-65 | 11.2 | 2692×1640×2350 | |||
| PYD900 | 50 | 3-13 | 15-50 | 11.3 | 2692×1640×2350 | |||
| Φ1200 | PYB1200 | 1200 | 145 | 20-50 | 110-168 | 8P 110 | 24.7 | 2790×1878×2844 |
| PYZ1200 | 100 | 8-25 | 42-135 | 25 | 2790×1878×2844 | |||
| PYD1200 | 50 | 3-15 | 18-105 | 25.3 | 2790×1878×2844 | |||
| Φ1750 | PYB1750 | 1750 | 215 | 25-50 | 180-360 | 8P 160 | 50.3 | 3910×2894×3809 |
| PYZ1750 | 185 | 10-30 | 80-210 | 50.3 | 3910×2894×3809 | |||
| PYD1750 | 85 | 5-13 | 60-180 | 50.2 | 3910×2894×3809 | |||
| Φ2200 | PYB2200 | 2200 | 300 | 30-60 | 420-700 | 8P 280-260 | 80 | 4622×3302×4470 |
| PYZ2200 | 230 | 10-30 | 130-410 | 80 | 4622×3302×4470 | |||
| PYD2200 | 100 | 5-15 | 80-200 | 81.4 | 4622×3302×4470 |
Note: Please enter your demand such as Raw material type, Capacity, Feeding material size, Final product size, etc. To become our quality clients will have access to a discount of contract!
