Home > Products > Stone Crushing Equipment > Jaw CrusherJaw Crusher
- Port:Qingdao,Tianjin, Shanghai or others
- Type:Primary Crusher
- Jaw Plate: High manganese steel
- Max.Feeding Size:1500mm
- Application:Ore crushing, cement,construction, highway
- Place of Origin:Henan China (Mainland)
- Brand Name:Hongxing
- Model Number: HX
- Certificate:ISO9001:2008
- Warranty: 12 Months
- Color: Orange / white
- Installation:under engineer's guidance
- Delivery Means: Container
Jaw crusher is firstly researched and developed in 1858. Due to its simple structure, stable and reliable work and convenient operation and maintenance, it had been widely applied in mining, quarrying, stone crushing and road and bridge construction since then.
Jaw crusher machine is mainly used for primarily crushing the raw materials, so that is also called primary jaw crusher or primary crushers.
Jaw crusher is one of the most important crushing machines in the stone crushing production line. It can be not only used for crushing stone materials, pebble and coal and be called stone jaw crusher, but used for manufacturing cement aggregate.
Hongxing jaw crusher adopts good steel to extend its service life. This crushing plant has many features such as deep crushing chamber, both big and small feeding mouth, controllable feeding granularity and the production capacity is high. The biggest material feeding mouth can reach 1200mm*1500mm and 1500mm*2100mm.
small jaw crusher
Features and Benefits of Jaw Crusher
1. Effectively solves the problem of high operation rate and little maintenance time caused by low output of limestone crusher.
2. Can complete the crushing work of large-sized limestone.
3. The blending of the two materials is even and the mixing quantity of the desulfurized limestone is greatly increased.
4. The electricity needed is reduced.
5. The granularity of the wastes is small.
6. Effectively improves the labor strength and the working environment of the workers.
Henan Hongxing Mining Machinery Co., Ltd is the largest jaw crusher supplier in China and produces jaw crushing plant with various models. The main models are mini jaw crusher or small jaw crusher and PE jaw crusher. Welcome to our company for visit and purchase.
Working Process of Hongxing Jaw Crusher

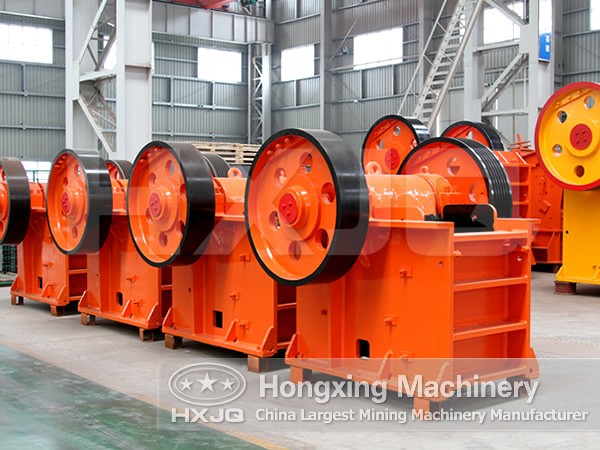

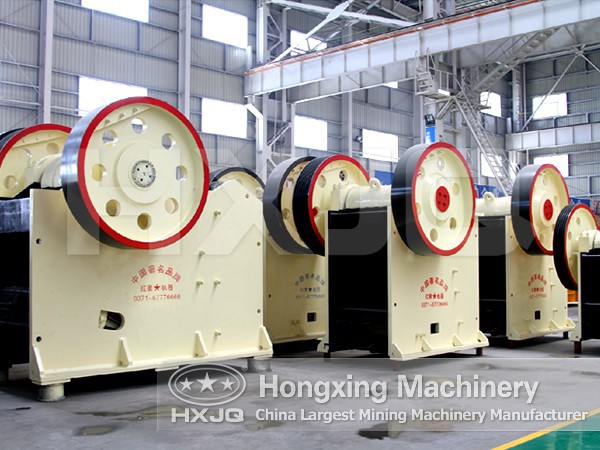

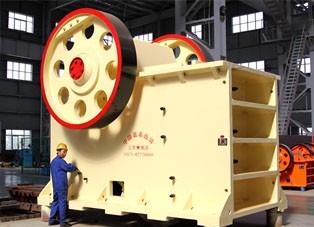

Product Gallery
Technical parameters of
Jaw Crusher
|
Model
|
Feed opening
(mm） |
Max.feeding size
(mm) |
Adjusting range of discharge opening
(mm) |
Processing capacity
(t/h) |
Rotation speed of eccentric shaft
(r/min) |
Motor power
(kw) |
Total weight
(t) |
Dimensions
（L×W×H） (mm) |
| PE-150×250 | 150×250 | 125 | 10-40 | 1-3 | 250 | 4P 5.5 | 0.8 | 720×660×850 |
| PE-200×300 | 200×300 | 180 | 15-50 | 2-6 | 260 | 4P 7.5 | 1.2 | 910×750×990 |
| PE-200×350 | 200×350 | 180 | 18-70 | 3-10 | 260 | 4P 11 | 1.5 | 1000×870×990 |
| PE-250×400 | 250×400 | 210 | 20-60 | 5-20 | 300 | 6P 15 | 2.8 | 1300×1090×1270 |
| PE-400×600 | 400×600 | 340 | 40-100 | 16-60 | 275 | 6P 30 | 7 | 1730×1730×1630 |
| PE-500×750 | 500×750 | 425 | 50-100 | 40-110 | 275 | 6P 55 | 12 | 1980×2080×1870 |
| PE-600×750 | 600×750 | 500 | 150-200 | 80-240 | 275 | 6P 55 | 15.8 | 2070×2000×1920 |
| PE-600×900 | 600×900 | 500 | 65-160 | 50-160 | 250 | 6P 55 | 17 | 2190×2206×2300 |
| PE-750×1060 | 750×1060 | 630 | 80-140 | 110-320 | 250 | 8P 110 | 29 | 2660×2430×2800 |
| PE-800×1060 | 800×1060 | 640 | 130-190 | 130-330 | 250 | 8P 110 | 29.8 | 2710×2430×2800 |
| PE-830×1060 | 830×1060 | 650 | 160-220 | 150-336 | 250 | 8P 110 | 30.7 | 2740×2430×2800 |
| PE-870×1060 | 870×1060 | 660 | 200-260 | 190-336 | 250 | 8P 110 | 31.5 | 2810×2430×2800 |
| PE-900×1060 | 900×1060 | 685 | 230-290 | 230-390 | 250 | 8P 110 | 33 | 2870×2420×2940 |
| PE-900×1200 | 900×1200 | 750 | 95-165 | 220-450 | 200 | 8P 110 | 52 | 3380×2870×3330 |
| PE-1000×1200 | 1000×1200 | 850 | 195-265 | 315-500 | 200 | 8P 110 | 55 | 3480×2876×3330 |
| PE-1200×1500 | 1200×1500 | 1020 | 150-350 | 400-800 | 180 | 6P 160-220 | 100.9 | 4200×3300×3500 |
| PE-1500×1800 | 1500×1800 | 1200 | 220-350 | 500-1000 | 180 | 8P 280-355 | 139 | 5160×3660×4248 |
| PE-1600×2100 | 1600×2100 | 1500 | 300-400 | 1300-2200 | 160 | 8P 350-380 | 150.6 | 6210×4013×4716 |
| PEX-150×750 | 150×750 | 120 | 18-48 | 8-25 | 320 | 4P 15 | 3.8 | 1200×1530×1060 |
| PEX-250×750 | 250×750 | 210 | 25-60 | 13-35 | 330 | 6P 22 | 5.5 | 1380×1750×1540 |
| PEX-250×1000 | 250×1000 | 210 | 25-60 | 16-52 | 330 | 6P 30 | 7 | 1560×1950×1390 |
| PEX-250×1200 | 250×1200 | 210 | 25-60 | 20-61 | 330 | 6P 37 | 9.7 | 2140×1660×1500 |
| PEX-300×1300 | 300×1300 | 250 | 20-90 | 16-105 | 300 | 6P 55 | 15.6 | 2720×1950×1600 |
Note: Please enter your demand such as Raw material type, Capacity, Feeding material size, Final product size, etc. To become our quality clients will have access to a discount of contract!
