PEX Jaw Crusher

  • Capacity:8-105TPH
  • Motor Powder15-55kw
  • Feeding Size:120-250mm
  • Product Models: PEW-150*750 to PEW-300*1300
  • Application Range:Secondary and fine crushing

Get a Quote Services Online

PEX Jaw Crusher
  • Place of Origin:Henan China (Mainland)
  • Brand Name:Hongxing
  • Model Number: HX
  • Certificate:ISO9001:2008
  • Warranty: 12 Months
  • Color: Orange / white
  • Installation:under engineer's guidance
  • Delivery Means: Container

PEX jaw crusher, also known as fine jaw crusher, has the advantages of big reduction ratio, small particle size of finished products, stable performance, less electricity consumption, convenient maintenance, low operational cost, etc. PEX jaw crusher is suitable for secondary and fine crushing , which is often used together with primary crusher (PE jaw crusher) in mining, metallurgy building materials, road, railway, construction waste disposal, water conservancy, chemical industry and so on.

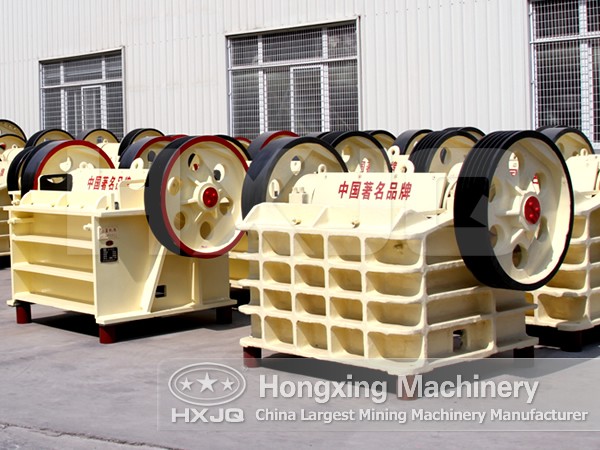

PEWJaw Crusher

PEW Jaw Crusher Features

1. Simple structure, reliable working condition and low operational cost;
2. The equipment is able to save more energy: the single machine will save energy by 15%~30% and the system will save more than one times;
3. The adjusting ranges of the material discharging mouth are wide so that it will satisfy the requirements of different customers;
4. Deep crushing cavity with no dead area, which improves the feeding capacity and output;
5. Safe and reliable lubricating system, convenient replacement of spare parts and less maintenance.

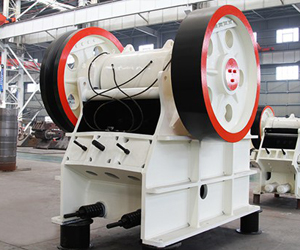

PEWJaw Crusher

How to Choose Suitable Model of PEW Jaw Crusher?

PEW jaw crusher has a variety of models, such as PEX250*1200 jaw crusher, jaw crusher PEX250×750 and jaw crusher PEX150×750. Then, how to choose suitable model of PEW jaw crusher?

1. Firstly, pay attention to the ore to be crushed.

2. Secondly, what is the feeding size of you materials? For example, PEX 250×1200 jaw crusher fits for materials less than 210mm, Jaw Crusher PEX150×750 fits for materials less than 120mm and PEX-300×1300 jaw crusher is suitable for materials less than 250mm. You should choose models according to the maximum feeding size. Only by this way can you use our PEX jaw crusher correctly.


In order to find the suitable models and design the best stone crusher for you, pls kindly inform us the following information:

1. Which kind of material you are going to crush? Soft stone (dolomite, limestone) or hard stone ( granite, basalt, river pebble ) ?
2. What's the max input size of the material? (In inch, centimeter or millimeter)
3. What's the granularity of the final products you need? (in millimeter, micron or mesh)
4. What's the production capacity you want? How many tons or cubic meters per hour?)
5. You want only a Crusher, or a complete Crushing Production Line?

Technical parameters of PEX Jaw Crusher

Feed opening
Max.feeding size
Adjusting range of discharge opening
Processing capacity
Rotation speed of eccentric shaft
Motor power
Total weight
PEX-150×750 150×750 120 18-48 8-25 320 15 3.8 1200×1530×1060
PEX-250×750 250×750 210 25-60 13-35 330 30 5.5 1380×1750×1540
PEX-250×1000 250×1000 210 25-60 16-52 330 30 7 1560×1950×1390
PEX-250×1200 250×1200 210 25-60 20-61 330 37 9.7 2140×1660×1500
PEX-300×1300 300×1300 250 20-90 16-105 300 55 15.6 2720×1950×1600
