Roll Crusher

  • Supply Ability:1 Set/Sets per Week
  • Port:Qingdao,Tianjin, Shanghai or others
  • Type:Roller Diameter/Roller Length
  • Application:Used as construction equipment

Get a Quote Services Online

Roll Crusher
  • Place of Origin:Henan China (Mainland)
  • Brand Name:Hongxing
  • Model Number: HX
  • Certificate:ISO9001:2008
  • Warranty: 12 Months
  • Color: Orange
  • Installation:under engineer's guidance

Roll crusher is one mining machine which can be often seen in the jobsites, which is mainly used for crushing the materials such as the pebbles, quartz and ceramics. Due to the smooth roller surface, it can be also called smooth roll crusher

Double Roll Crusher

Double roll crusher is another kind of roller crusher which has two crushing rollers. Spare parts of double roll crusher consist of the transmission device, frame, crushing rollers, mechanical spring device, linkage and other components. Doule roll crusher has the advantages of big capacity, large crushing ratio(5-8), low noise, easy to maintain, etc.

Application of Roll Crusher

Roll crusher can be applied in the industries of cement, the chemical industry, mining, metallurgy and building material, which is suitable for the medium crushing on the material. And the discharging granularity can be adjusted freely, so we must have one process of iron cleaning before the crushing process, because the hard iron material will bring much more damage to the crushing machine.

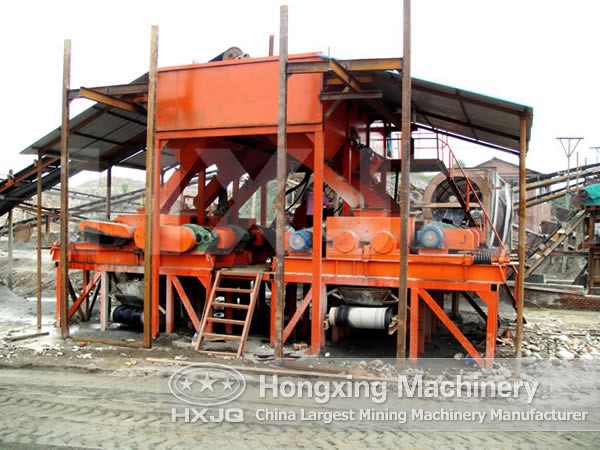

Production Site of Roll Crusher

Working Principle of Roller Crusher

The working principle of roller crusher is depending on the mutual compression of the rollers at high speed and low rotating rate. The material can vertically fall to the crushing chamber from the top, which can be turned to the powder on the big impact caused by rollers, and the rest of the materials with the hardness also can be broken in the interior part. The second grinding can highly lower the energy consumption and improve the throughput.

In the working process of roller crusher, once there are some materials which cannot be crushed, the spiral will become short by the stress on it, and then the feeding port will become larger in order to make the material be discharged from the crushing machine, which will not cause much more damage to the crushing machine.

Smooth roll crusher has simple structure, small occupying land and low investment.

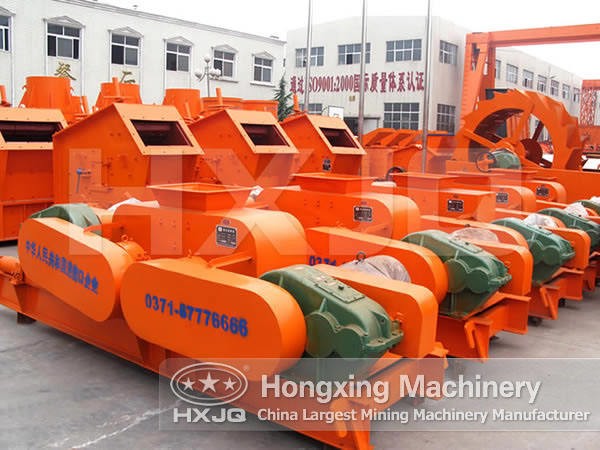

Product Gallery

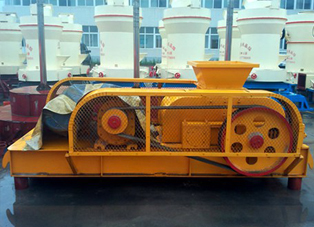

Roll Crusher

roller crusher

Technical parameters of Roll Crusher

Model 2PG0425 2PG0640 2PG0740 2PG0850 2PG1060 2PG1260 2PG1560
Roller Diameter(mm) Ф400 Ф610 Ф700 Ф800 Ф1000 Ф1200 Ф1500
Roller Width(mm) 250 400 400 500 600 600 600
Feeding Size(mm) ≤25 ≤25 ≤25 ≤25 ≤30 ≤30 ≤30
Discharging Size(mm) 2-8 2-8 2-8 2-8 2-10 2-10 2-10
Capacity(t/h) 5-10 10-20 15-30 20-40 30-50 40-70 60-110
Motor Type Y132M-6 Y180L-6 Y200L-4 Y225M-4 Y250M-4 Y315M-6 Y315L-6
Motor Power(kw) 5.5-2 15*2 30*2 45*2 55*2 75*2 110*2
